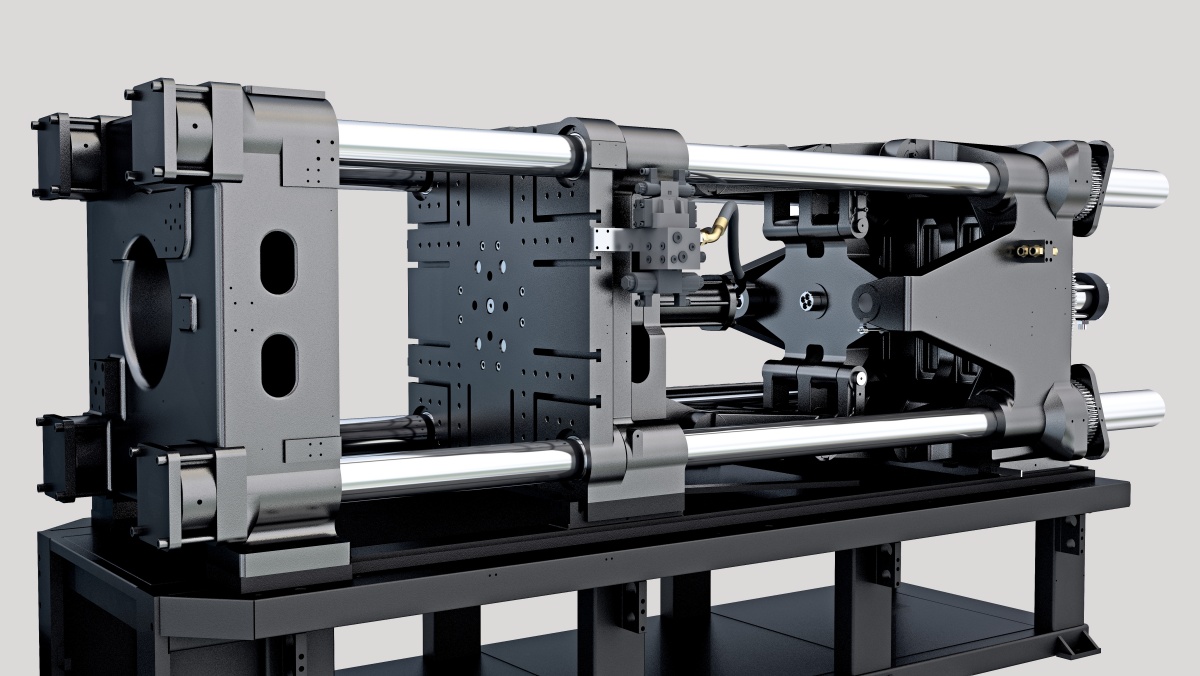

全新鎖模結構

Advanced design of clamping structure

● 利用有限元分析軟件最優化鎖模設計，應力均勻，高剛性，可靠耐用；特大開模行程，滿足長管胚生產

Extra durability achieved through high-strength clamping structure;Extra large opening stroke can satisfy the production of long preform.

高效專業螺桿

Efficient and high-performance screw

● 低剪切及大長徑比設計，望化效率提高30%以上，同時有效降低產品AA值

The design of low shear and large L/D ratio increases the plasticising efficiency by more than 30%,and effectively reduces acetaldehyde level.

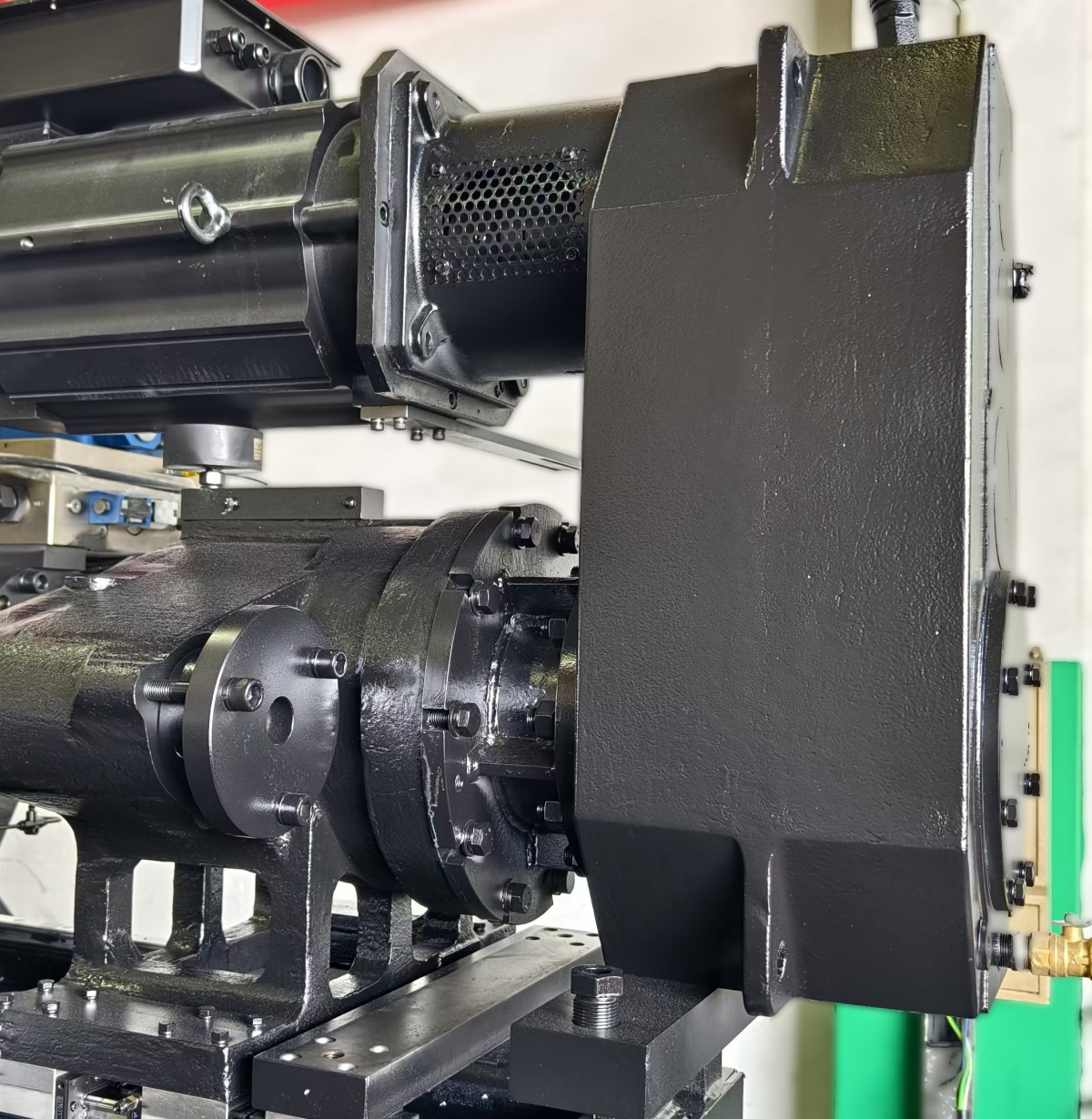

電動同步熔膠特點

The features of electric plasticising

● 可實現熔膠與開模、取件動作同步，有利于縮短生產周期；整機節能約20%-40%,同時減少液壓油及冷卻水的使用是大功率電機(液冷)及伺服器，保障熔膠穩定、可靠運行降低整機噪音，改善車間操作環境

The synchronisationof plasticising,mould opening and object picking shortens the production cycle.20-40% energy saving is attained.Reduction in hydraulic oil and cooling water consumption High-performance motor and server ensures stable plasticisingLow-noise.

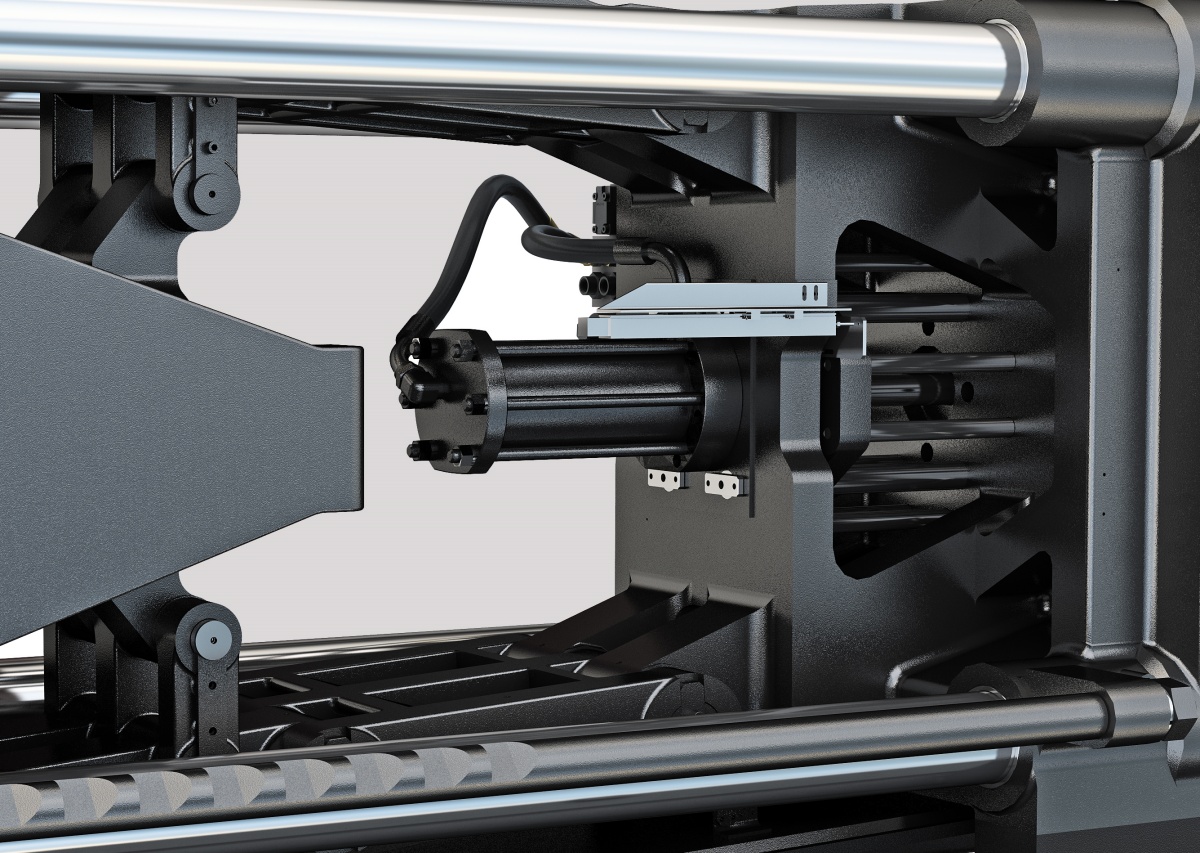

大力頂針設計

Strong ejector design

● 頂針力及頂針行程最大化，加大頂針油路，頂針快速且具有爆發力

Maximised ejector force and ejector stroke facilitate enlarged hydraulic circuits.

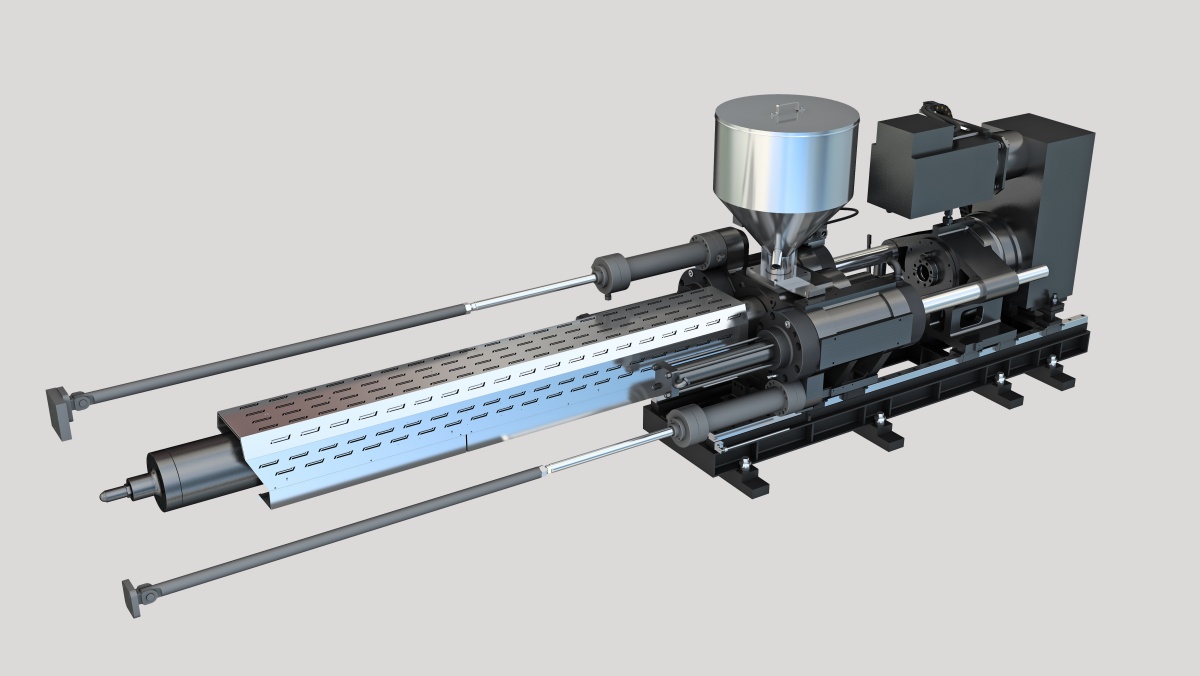

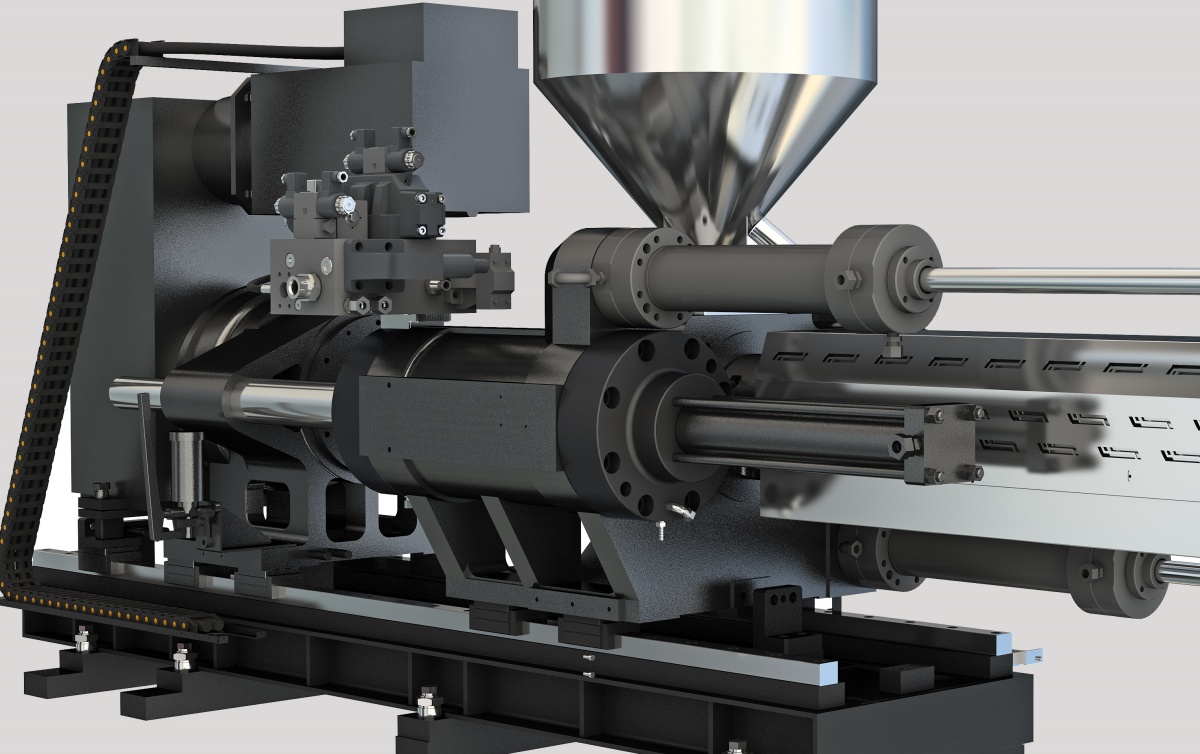

線性導軌射臺

Linear guide rail injection unit

● 高精度低摩擦，降低機械背壓與能耗

● 小排油型注射油缸，阻力低，響應快

● Linear guide rail greatly reduces mechanical loss and improves machine performance.

● Oil-discharge injection cylinder with low resistance and fast response.

穩定精密注射

Stable and precise injection

● 配精密耐磨雙合金三小件

Wear-resistant tip setis provided.

卓越塑化效果

Excellent plasticising effect

● 可確保普通瓶胚的高透明度，原料中添加色母或色粉或色油時可溜色均勻，原料中添加較大比例的回收料仍能均勻塑化

It ensures the high transparency of the ordinary preform.Raw materials of even colour is attainable when mixing with masterbatch,toner and colour oil.Materials of a larger proportion of recycled plastics can be also evenly plasticised.

大扭矩油馬達

Large torque hydraulic motor

● 特續穩定輸出高扭矩，為PET高速熔膠提供可靠保障；(部分標配為高扭矩馬達，耐壓210bar)

Stable and continuous output of high torque to meet the requirement of high speed plas ticising for PET.(Some of the standard equipment are with high torque motor which is of 210 bar)

優異節能效果

Excellent energy saving effect

● 精密節能伺服電機及知名品牌內嚙合高效齒輪泵，大通徑油路及管路

Precise and servo-driven motor and high performanc eservo gear pump.Large diameter hydraulic pipeline.
